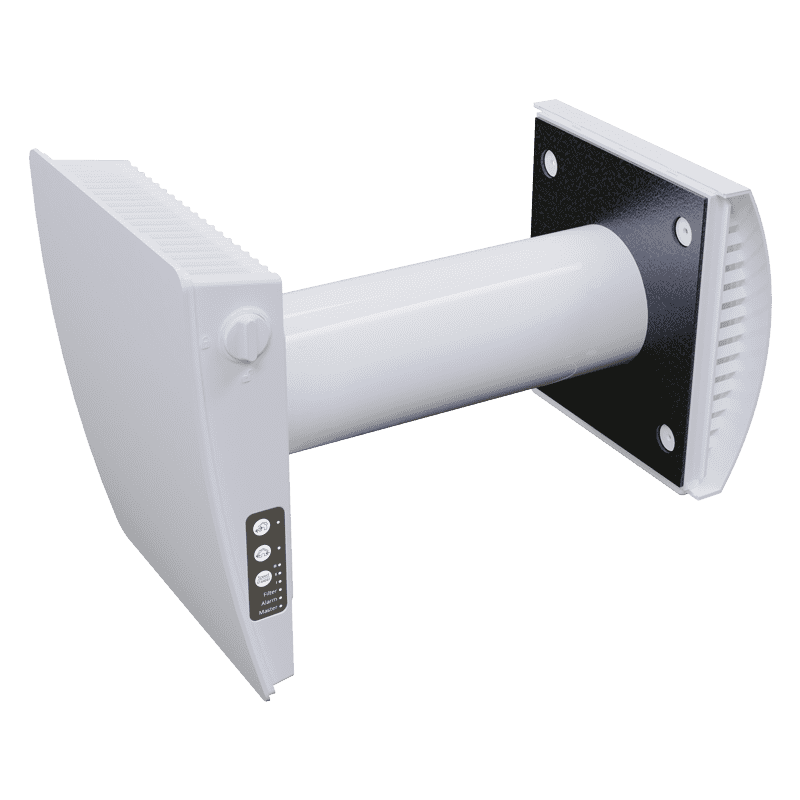

Ventilators VENTS TwinFresh Style mini

The user-friendly TwinFresh Style mini ventilator will provide the room with clean and fresh air. Significant reduction in ventilation heat loss due to heat recovery. Humidity balance and regulated air exchange create individually controlled microclimate.

  •  Lieferung und Rückgabe

    Lieferung

    Rücksendungen ohne vorherige Rücksprache mit EXTRAVENT werden nicht entgegengenommen. Rücksendungen werden nur mit Originalverpackung und unbenützt akzeptiert sofern diese innert 10 Tagen ab Bestellung retourniert werden. Rücksendungen werden je nach Zustand bis max. 80% von Warenwert vergütet.

    Zahlungsbedingungen

    Die Zahlungen sind vom Besteller ohne irgendeinen Abzug (z.B. Skonto, Spesen, Steuern, Gebühr usw.) zu leisten. Die Zahlungsfrist beträgt 30 Tage ab Rechnungsdatum. Bei Nichtbezahlung innerhalb der Zahlungsfrist tritt ohne weitere Mahnung der Verzug ein. In diesem Falle ist EXTRAVENT berechtigt, Verzugszinsen in der Höhe von 6 % p. a. geltend zu machen.

    Garantie

    2 Jahre Garantie auf alle Materiallieferungen Auf alle Materiallieferungen durch EXTRAVENT . Von der Garantie ausgeschlossen sind alle Arbeiten für Ein- oder Ausbau sowie Anreise zum Kunden und alle mögliche anfallende Kosten für Betriebsunterbrüche oder weiteres. Ausgeschlossen sind alle Luftfilter, Filter für Lackierkabinen und Verschleissteile oder Reparaturen auf Grund mangels Wartung oder Unterhalt der Anlage durch den Betreiber. Annahme: Einschichtbetrieb der Anlage.
  •  Stelle eine Frage
    Extravent Monoblocks · Lüftungsgeräte · Ventilatoren · Steuerung · Regulierung

    Ventilators VENTS TwinFresh Style mini

    Stelle eine Frage

      ... Leute sehen sich das gerade an

      Teilen
    Guaranteed Safe CheckoutTrust

    Product Description

    FUNCTIONAL EFFICIENT USER-FRIENDLY
    Many units can be connected to one control network. High heat recovery efficiency of up to 81 % is achieved due to the use of a cellular regenerator. The design of the unit provides easy maintenance and installation.

    High-quality soundproofing material is used keeping the noise of the unit at the level of human whisper. The unit modes are controlled via the sensor control panel located on the casing of the unit or via the remote control. The capacity of one ventilator is enough to provide a room with the area of up to 15 m2 with fresh air.
    EASY CONTROL
    • The unit modes are controlled via the sensor control panel located on the casing of the unit, via the remote control or via the smartphone.

    Operation modes:

    • Speed setup

    • Operation mode setup

       – Ventilation

       – Regeneration

    • Timer setup

       – 4 hours at speed III

       – 8 hours at speed I

    Operation modes:

    • ventilation with energy recovery

    • ventilation

    • speed switching and ventilator turning off

    It is possible to control all the ventilators simultaneously by connecting them to a single network.
    In this case, all ventilators (Secondaries) will respond to a signal from the Primary ventilator only.



    ADVANTAGES
    Trendy ventilator design. High efficiency – 81 %.
    Can be mounted inside a prepared hole (from ∅ 110 mm) in a wall. Humidity control with a humidity sensor.
    Connection of the units into one control network. Connection of an external CO2 sensor or other external relay sensors.
    Manual closing of the airtight damper after switching off the unit to ensure absence of drafts. Noise at the level of human whisper (from 21 up to 31 dBA at the distance of 3 m).
    Ventilation of premises with the area of about 15 m 2 (the area is approximate and depends on the ventilation standards in your country). Simple mounting and maintenance.
    RETAINS HEAT
    • To keep the heat inside the room, the ventilator operates in the regeneration mode using two cycles. Thanks to this, heat is returned to the room, moisture balance is ensured, and the load on the heating system in winter is reduced.
    WHEN IT IS COLD OUTSIDE
    SAVES ENERGY
    • To ensure energy saving, the ventilator operates in the energy regeneration mode using two cycles. This reduces the load on the air conditioning system in summer.
    WHEN IT IS HOT OUTSIDE
    HOW IS IT DESIGNED?
    Specific energy consumption (SEC) [kWh(m2.a)] Cold Average

    Warm

    -78.6 А+ -38.1 А -14.8 Е
    Type of ventilation unit Bidirectional
    Type of drive installed Stepless fan speed control
    Type of heat recovery system Regenerative
    Thermal efficiency of heat recovery [%] 71
    Maximum air flow [m3/h] 15
    Power [W] 3.8
    Sound power level [dBA] 48
    Reference flow rate [m3/s] 0.004
    Reference pressure difference [Pa] 0
    Specific power input (SPI) [W/(m3/h)] 0.24
    Control typology Local demand control
    Classification of airflow sensitivity to pressure variations, according to EN 13141-8 [%] 0.4
    Internet address http://ventilation-system.com/
    Annual electricity consumption (AEC) [kWh electricity/a] Cold Average Warm
    173 173 173
    Annual heating saved (AHS) [kWh primary energy/a] Cold Average Warm
    8294 4240 1917
    Name Description
    EH-14 white 100 Plastic hood.

    Colour options:
    White

    Black

    Grey

    Terracotta

    Brown

    Beige
    EH-14 chrome 100   Grey plastic outer hood with a brushed stainless steel cover
    EH-2 grey 100 Grey painted stainless steel outer hood for thin walls
    EH-2 chrome 100 Polished stainless steel hood for thin walls
    EH-13 white 100 White painted aluminium outer hood for cold climate
    EH-13 chrome 100 Stainless steel ventilation hood for cold climate
    MVMO 150 bV1s An Round metal grille
    NP 100 white Kit for angular mounting with white colour grille
    NP 100 chrome Kit for angular mounting with stainless steel outer grille
    1005 Round air duct with a diameter of 100 mm and a length of 500 mm with a foam plug
    1010 Round air duct with a diameter of 100 mm and a length of 1000 mm with a foam plug
    T TwinFresh Style   Cardboard template for indoor installation of the unit
    RK1 TwinFresh Remote control
    CO2-1 CO2 sensor with LED indication and sensor buttons
    CO2-2 CO2 sensor
    TRF-220/24-1,6 or TRF-120/24-1,6 Power supply for CO2 sensors
    SF3 TwinFresh G3 G3 filter kit (2 pcs.)
